Examples¶

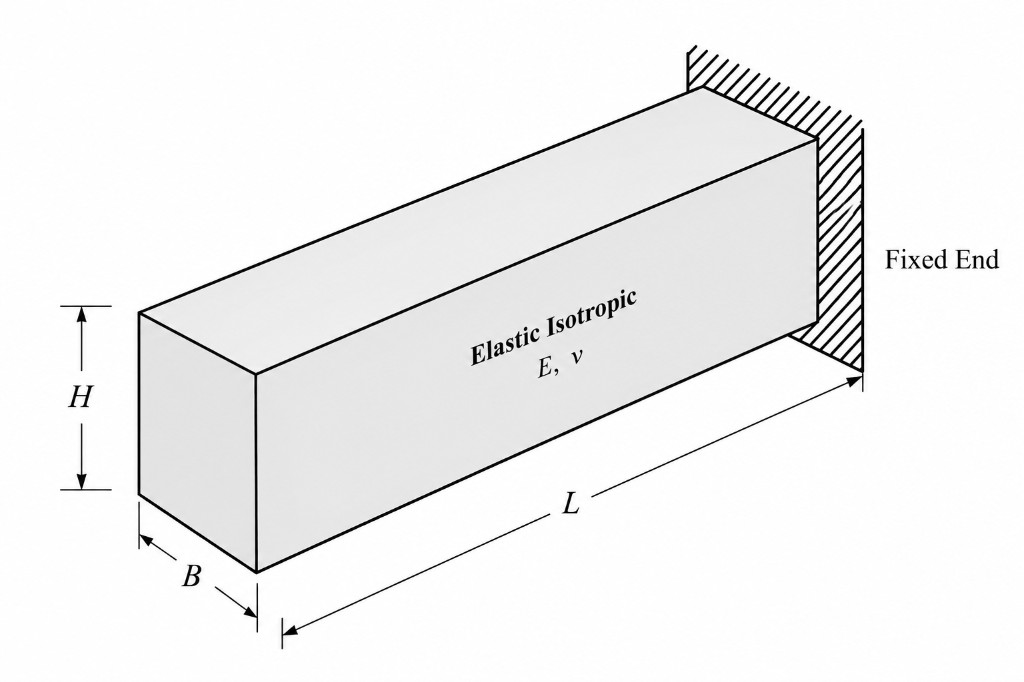

The following example benchmarks the performance of some of the solvers available in this library versus the ones built into OpenSees. The benchmarks are performed on a 3-D solid mesh of a cantilever beam, similar to the one used on this OpenSees Digital post. The bar is 10 in long, 1 in thick, and 2 in tall (kip–in–sec units). One end is fixed in all directions.
The mesh is built with ops.block3D and stdBrick elements. The mesh density is controlled
by a mesh factor \(f\): element size along the short cross-section directions is
\(t / f\) where \(t\) is the bar thickness, which sets the brick counts along \(x\), \(y\), and \(z\).
import math
import openseespy.opensees as ops
BAR_LENGTH = 10.0
BAR_HEIGHT = 2.0
BAR_THICKNESS = 1.0
def mesh_counts(factor):
mesh_size = BAR_THICKNESS / factor
nx = max(1, int(math.ceil(BAR_LENGTH / mesh_size)))
ny = max(1, int(math.ceil(BAR_THICKNESS / mesh_size)))
nz = max(1, int(math.ceil(BAR_HEIGHT / mesh_size)))
return nx, ny, nz
def build_model(nx, ny, nz):
ops.wipe()
ops.model("basic", "-ndm", 3, "-ndf", 3)
ops.nDMaterial("ElasticIsotropic", 1, 29_000.0, 0.3, 0.284e-3 / 386.4)
ops.block3D(
nx, ny, nz, 1, 1, "stdBrick", 1,
1, 0.0, -BAR_THICKNESS / 2.0, -BAR_HEIGHT / 2.0,
2, BAR_LENGTH, -BAR_THICKNESS / 2.0, -BAR_HEIGHT / 2.0,
3, BAR_LENGTH, BAR_THICKNESS / 2.0, -BAR_HEIGHT / 2.0,
4, 0.0, BAR_THICKNESS / 2.0, -BAR_HEIGHT / 2.0,
5, 0.0, -BAR_THICKNESS / 2.0, BAR_HEIGHT / 2.0,
6, BAR_LENGTH, -BAR_THICKNESS / 2.0, BAR_HEIGHT / 2.0,
7, BAR_LENGTH, BAR_THICKNESS / 2.0, BAR_HEIGHT / 2.0,
8, 0.0, BAR_THICKNESS / 2.0, BAR_HEIGHT / 2.0,
)
ops.fixX(0.0, 1, 1, 1)
Timings were measured on one laptop; expect different ordering and absolute times on other platforms.
| OS | Windows 11 (build 26200) |
| CPU | 11th Gen Intel Core i7-11800H @ 2.30 GHz (8 cores, 16 threads) |
| GPU | NVIDIA GeForce RTX 3050 Ti Laptop GPU (4 GB VRAM) |
| NVIDIA driver | 591.74 |
| Python | 3.12.5 |
| OpenSeesPy | 3.8.0 with scipy, UMFPACK, and CUDA 13 / nvmath backends |
Linear static analysis¶
Analysis setup¶
A static analysis is run for an increasing load over 10 LoadControl steps
(\(\mathrm{d}\lambda = 0.1\)). More than one step cuts down variance in short run times; with
everything else held fixed, differences in wall time are dominated by the linear equation solver.
The native OpenSees solvers BandGeneral and SuperLU are compared with
spsolve, umfpack, and direct_solver from this library.
from openseespy_solvers.scipy import spsolve
from openseespy_solvers.nvmath import direct_solver
NUM_STEPS = 10
solver = spsolve() # or direct_solver(), scipy.umfpack(), …
ops.system("PythonSparse", solver.to_openseespy())
ops.numberer("RCM")
ops.constraints("Plain")
ops.integrator("LoadControl", 1.0 / NUM_STEPS)
ops.algorithm("ModifiedNewton", "-FactorOnce") # avoids recomputing the factorization
ops.analysis("Static")
start = time.perf_counter()
status = ops.analyze(NUM_STEPS)
seconds = time.perf_counter() - start
Reported times are wall-clock seconds for the full ops.analyze(NUM_STEPS) call.

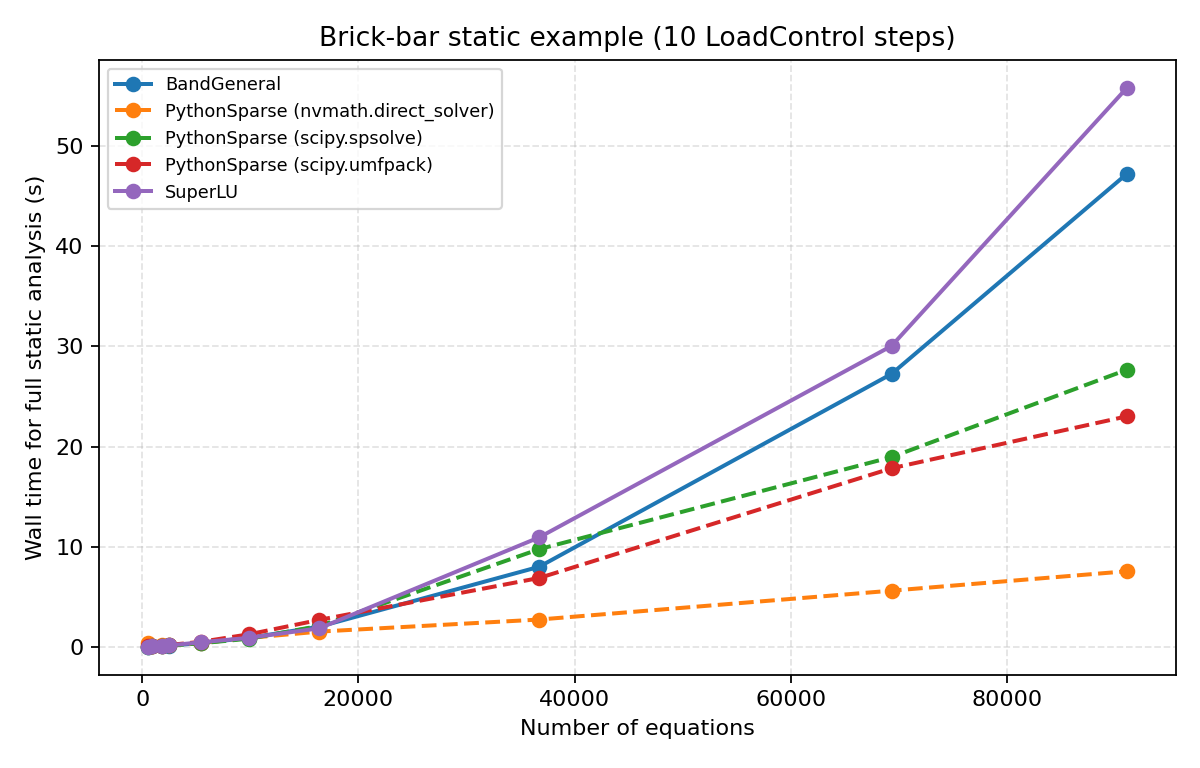

Results¶

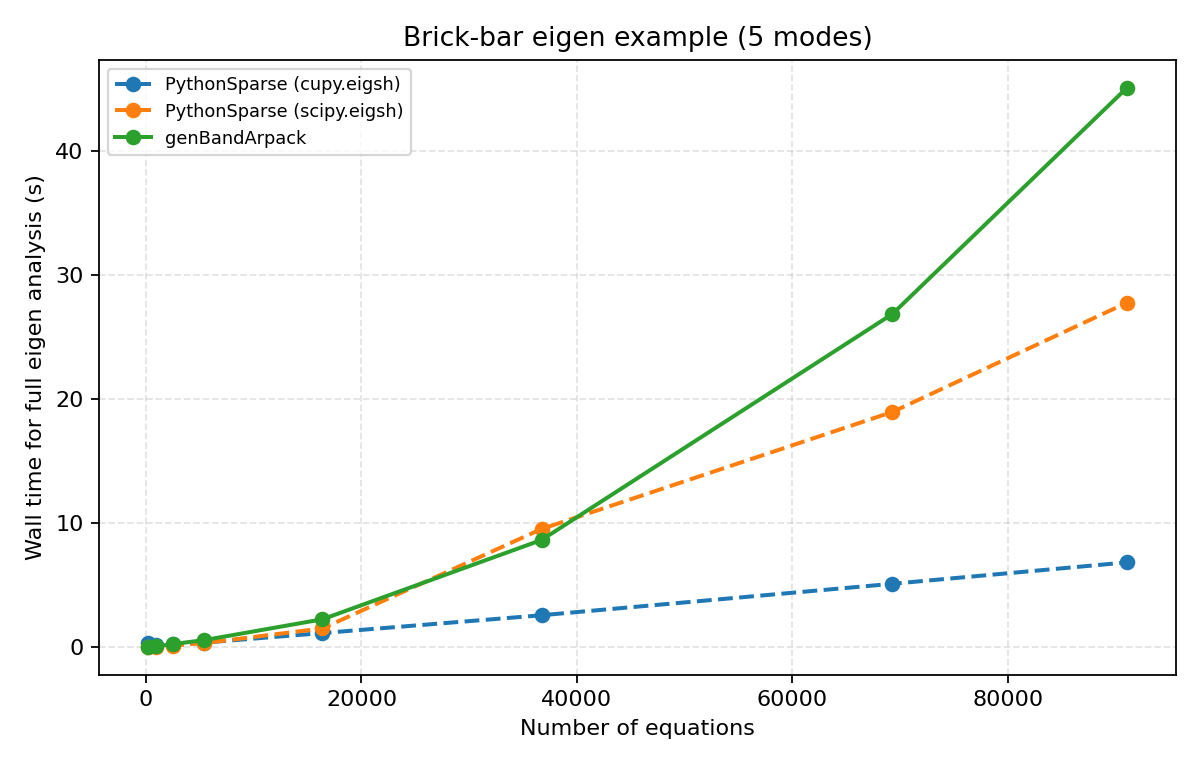

Modal (eigen) analysis¶
The same bar mesh is used to solve the generalized eigenproblem \((\mathbf{K} - \lambda \mathbf{M})\mathbf{\Phi} = \mathbf{0}\) for the five lowest-frequency modes.
Analysis setup¶
from openseespy_solvers.scipy import eigsh
from openseespy_solvers.cupy import eigsh as cupy_eigsh
NUM_MODES = 5
eig_solver = eigsh() # or cupy_eigsh()
start = time.perf_counter()
lam = ops.eigen("PythonSparse", NUM_MODES, eig_solver.to_openseespy())
# lam = ops.eigen(NUM_MODES) # use the built-in banded ARPACK solver
seconds = time.perf_counter() - start
Reported times are wall-clock seconds for the full ops.eigen(...) call.
Results¶
